feat: Theater route — A2UI message-stream playback (native @a2ui/angular)

[jerelvelarde]

A "theater" that replays a recorded A2UI message stream into a live native surface, message by message — useful for demoing and debugging how a surface builds up over a generation.

Depends on #121 (Custom Catalog). This branch is stacked on #121, so the foundation commits appear in this diff until #121 merges. The Theater-specific changes are the last 4 commits: theater/** plus the /theater route + nav entry.

What

• /theater route with a playback component and a generation-based playback engine.
• Recordings derived from the flight and sales example surfaces.
• Renders natively via @a2ui/angular (no iframe); replays the message prefix as a batch so the native surface renders correctly at each step.

Why

Makes the incremental, message-by-message nature of A2UI surfaces visible — a useful lens for demos and for debugging streamed generations.

Testing

ng build (lint + AOT) green on a clean build; theater + composer-shell unit tests pass (25 specs).

---

Contributed by CopilotKit.

Screenshots

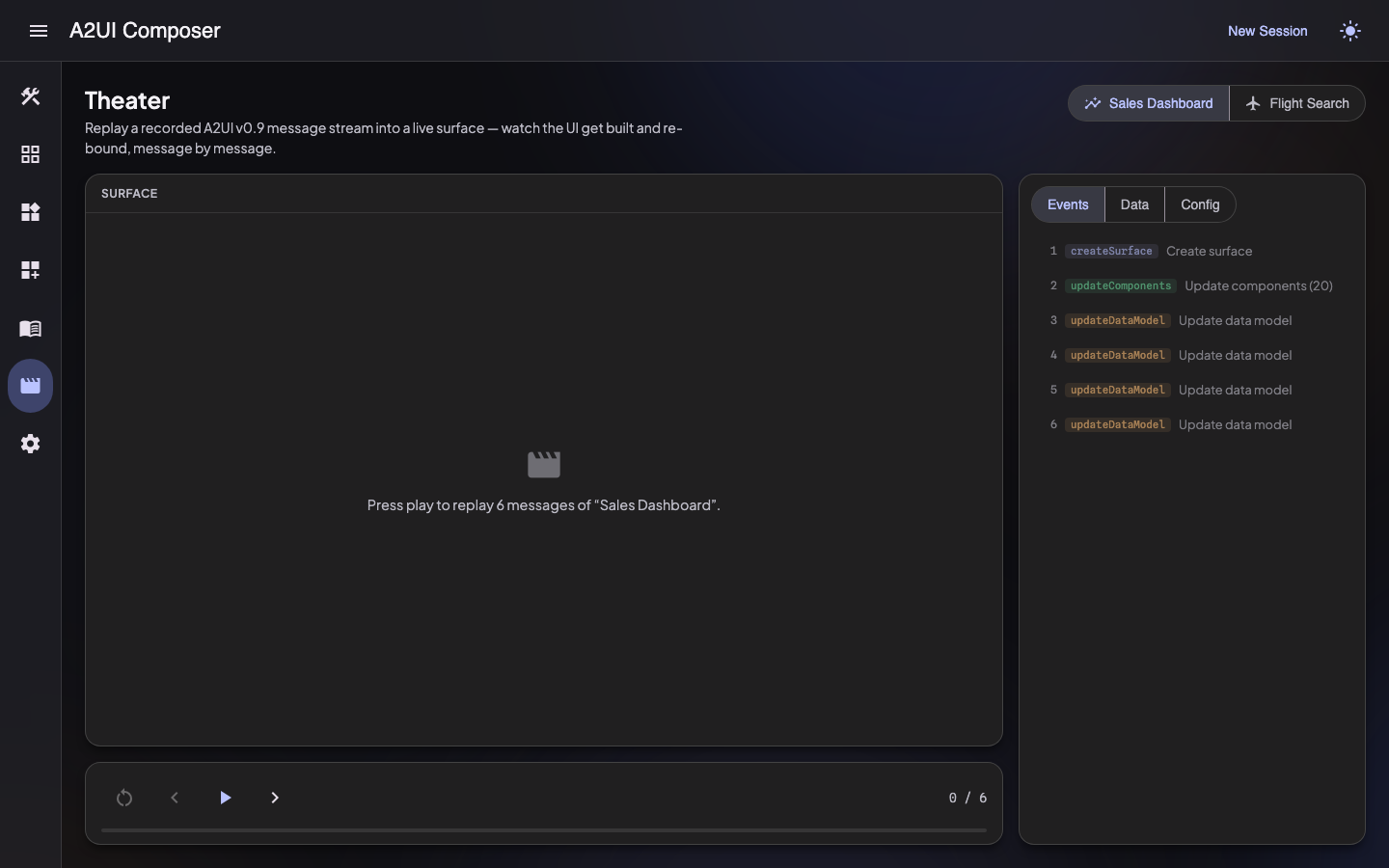

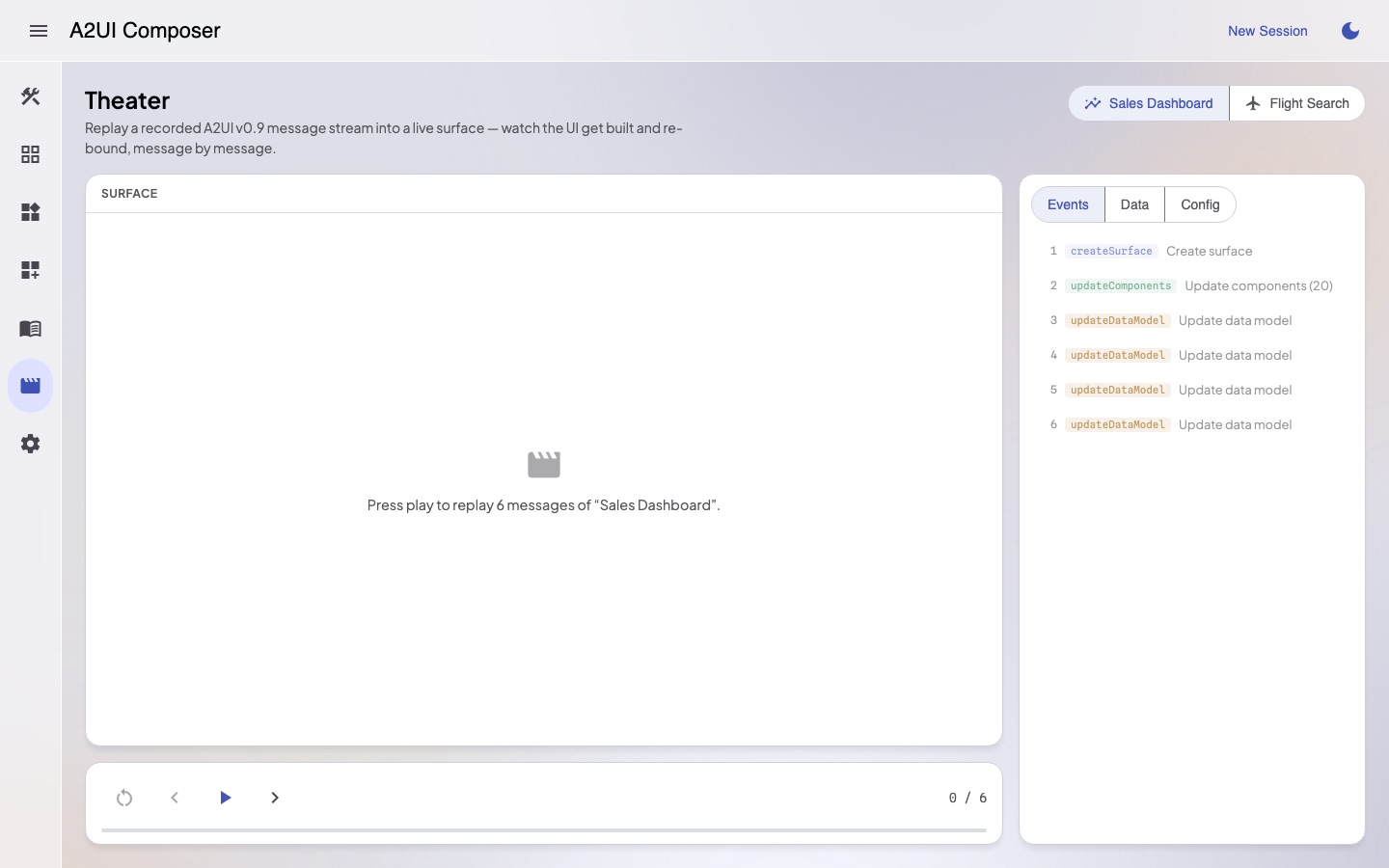

/theater — A2UI message-stream playback:

Light	Dark

[google-cla]

Thanks for your pull request! It looks like this may be your first contribution to a Google open source project. Before we can look at your pull request, you'll need to sign a Contributor License Agreement (CLA).

View this failed invocation of the CLA check for more information.

For the most up to date status, view the checks section at the bottom of the pull request.

[gemini-code-assist]

Code Review

This pull request introduces a 'Custom Catalog' page and a 'Theater' playback route to the shell application, allowing users to render assembled components natively and replay recorded A2UI message streams. It adds several custom catalog components (such as charts, tables, and cards) along with their respective schemas, styles, and tests. The review feedback focuses on improving robustness against invalid or malformed user-provided JSON inputs. Specifically, the reviewer recommends adding type checks and optional chaining in the data table, pie chart, bar chart, catalog editor, and theater inspector to prevent potential runtime crashes and TypeErrors when parsing or binding dynamic data.

[gemini-code-assist]

Since the data table is driven by user-editable JSON in the Monaco editor, the columns and rows arrays could potentially contain null or undefined elements if the user inputs invalid structures. Filtering out any non-object elements from these arrays in the computed properties ensures that the template loops and the cell helper can safely access properties without throwing runtime TypeErrors.

Suggested change

	protected readonly columns = computed(
	() => (this.props()['columns']?.value() ?? []) as TableColumn[],
	);
	protected readonly rows = computed(
	() => (this.props()['rows']?.value() ?? []) as Record<string, unknown>[],
	);
	protected readonly columns = computed(
	() => ((this.props()['columns']?.value() ?? []) as TableColumn[]).filter(c => c && typeof c === 'object'),
	);
	protected readonly rows = computed(
	() => ((this.props()['rows']?.value() ?? []) as Record<string, unknown>[]).filter(r => r && typeof r === 'object'),
	);

[gemini-code-assist]

The slices computed property accesses properties like d.value, d.color, and d.label directly on the elements of the data array. If the user-provided JSON contains null or undefined elements in the data array, this will cause a runtime crash. Using optional chaining (d?.value, d?.color, d?.label) prevents these crashes and ensures robust rendering.

  protected readonly slices = computed<PieSlice[]>(() => {
    const data = this.data();
    const innerR = this.innerRadius();
    const total = data.reduce((sum, d) => sum + (Number(d?.value) || 0), 0);
    if (total <= 0) return [];

    const slices: PieSlice[] = [];
    let cursor = 0;
    data.forEach((d, i) => {
      const value = Number(d?.value) || 0;
      const start = (cursor / total) * 360;
      cursor += value;
      let end = (cursor / total) * 360;
      // Keep a lone full-circle slice visible (an exact 360° arc is a no-op).
      if (end - start >= 360) end = start + 359.999;
      slices.push({
        path: this.arc(start, end, innerR),
        color: d?.color ?? PALETTE[i % PALETTE.length],
        label: String(d?.label ?? ''),
        value,
      });
    });
    return slices;
  });

[gemini-code-assist]

The bars computed property accesses d.value and d.label directly on the elements of the data array. If the user-provided JSON contains null or undefined elements in the data array, this will cause a runtime crash. Using optional chaining (d?.value, d?.label) prevents these crashes and ensures robust rendering.

Suggested change

	protected readonly bars = computed<Bar[]>(() => {
	const data = this.data();
	const max = data.reduce((m, d) => Math.max(m, Number(d.value) || 0), 0);
	return data.map((d, i) => {
	const value = Number(d.value) || 0;
	const height = max > 0 ? (value / max) * PLOT_H : 0;
	const x = i * SLOT_W + (SLOT_W - BAR_W) / 2;
	const y = TOP_PAD + (PLOT_H - height);
	return {
	x,
	y,
	width: BAR_W,
	height,
	label: String(d.label ?? ''),
	labelX: x + BAR_W / 2,
	valueLabel: `${this.prefix()}${value}${this.suffix()}`,
	valueY: y - 6,
	};
	});
	});
	protected readonly bars = computed<Bar[]>(() => {
	const data = this.data();
	const max = data.reduce((m, d) => Math.max(m, Number(d?.value) || 0), 0);
	return data.map((d, i) => {
	const value = Number(d?.value) || 0;
	const height = max > 0 ? (value / max) * PLOT_H : 0;
	const x = i * SLOT_W + (SLOT_W - BAR_W) / 2;
	const y = TOP_PAD + (PLOT_H - height);
	return {
	x,
	y,
	width: BAR_W,
	height,
	label: String(d?.label ?? ''),
	labelX: x + BAR_W / 2,
	valueLabel: `${this.prefix()}${value}${this.suffix()}`,
	valueY: y - 6,
	};
	});
	});

[gemini-code-assist]

The onEdit method parses the user-provided text directly using JSON.parse and casts it to Record<string, unknown>. However, if the user inputs a valid JSON literal that is not an object (such as a number, boolean, string, or null), JSON.parse will succeed but the resulting value will not be an object. This can cause runtime errors downstream when the renderer expects a dictionary. Adding a check to ensure the parsed value is a non-null object prevents these potential crashes.

  protected onEdit(text: string): void {
    let parsed: unknown;
    try {
      parsed = JSON.parse(text);
    }
    catch {
      return;
    }
    if (!parsed || typeof parsed !== 'object' || Array.isArray(parsed)) {
      return;
    }
    this.renderer.processMessages([
      {updateDataModel: {surfaceId: this.activeExampleId(), path: '/', op: 'replace', value: parsed as Record<string, unknown>}},
    ] as never);
  }

[gemini-code-assist]

The currentData computed property casts messages[i]['updateDataModel'] to {value?: unknown} and checks 'value' in update. If updateDataModel is not an object (e.g., if it is null or a primitive value), the in operator will throw a runtime TypeError. Adding a check to ensure update is a non-null object before using the in operator makes this computation safe.

  protected readonly currentData = computed<string>(() => {
    const messages = this.activeRecording().messages;
    let value: unknown = {};
    for (let i = 0; i < this.step(); i++) {
      const update = messages[i]['updateDataModel'];
      if (update && typeof update === 'object' && 'value' in update) {
        value = (update as {value: unknown}).value;
      }
    }
    return formatJson(value);
  });

[github-actions]

⚡ A2UI Composer PR Preview

Your automated preview is successfully live (commit d00bd0e):
👉 Launch PR Preview

Note: This environment will be wiped automatically when the PR is merged or closed.

[jerelvelarde]

Addressed the Gemini review — the catalog is driven by user-editable JSON in the Monaco editor, so these harden against malformed input:

• Chart computeds guard with Array.isArray plus optional-chaining / Number(d?.value) || 0, so a non-array or non-object payload can't throw.
• onEdit wraps JSON.parse in try/catch and rejects non-object / array payloads.
• theater's currentData uses a typed cast plus a 'value' in update guard before reading.
